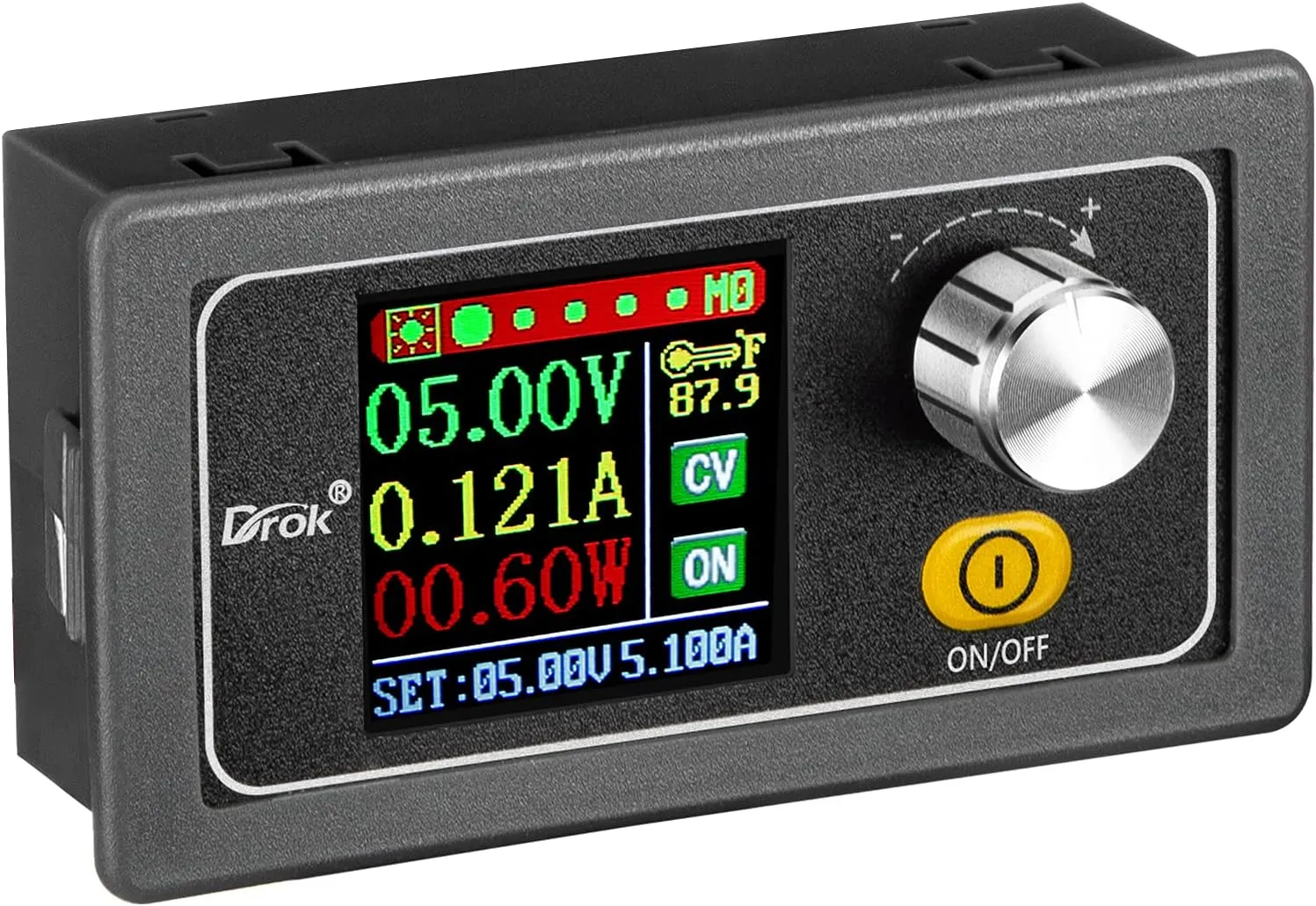

- Variable Power Supply --- input voltage range DC 6.0-36V, output voltage range DC 0.6-36V, max output current 5A, max output power 80W.
- Easy to Use --- allows to set volts and limit the current, power on off and accurate voltage setting return after power down.
- Application --- a compact and powerful, on the go variable power supply or LED driver; DIY lab power supply.

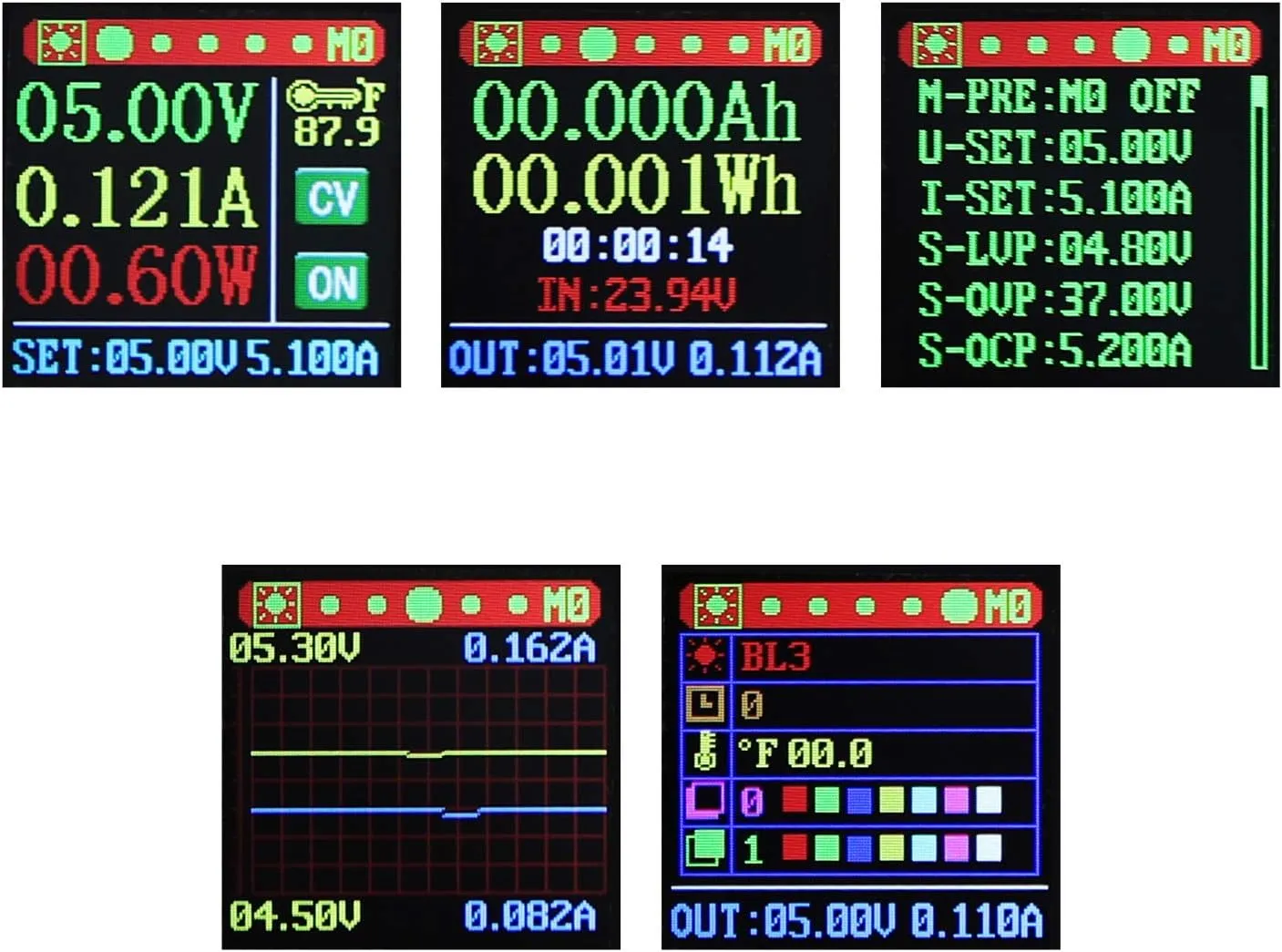

- Digital Display --- input or out voltage, current, temperature, power, electric capacity, electric quantity, running time, voltage and current curve, system and power parameters.
- Memory Data --- 10 data groups of M0-M9 can be stored. Default will be stored in data group M0 and M1/M2 data group can be quickly called up.
Parameters:
Input voltage range: DC 6.0-36V
Output voltage range: DC 0.6-36V
Output current: 0.000A-5.000A
Output power: 80W
Input current limit: Max 6A
Voltage resolution: 0.01V
Current resolution: 0.001A
Voltage precision: ±0.3% 1 byte
Current precision: ±0.4% 3 bytes
Capacity: 0-999999AH
Energy: 0-999999WH
Time: 0-1000Hours
Hardware protection: output short circuit protection, output anti backflow protection, can directly charge the rechargeable battery, without additional anti backflow diode.
Software protection: over voltage protection (OVP), over current protection (OCP), over power protection (OPP), over temperature protection (OTP), input low voltage protection (LVP), power chip self protection (OEP).
The item has constant current function, can be used to charge the rechargeable battery within 0.6V~36V.
Package Includes:
1 pc DC Buck Boost Converter
