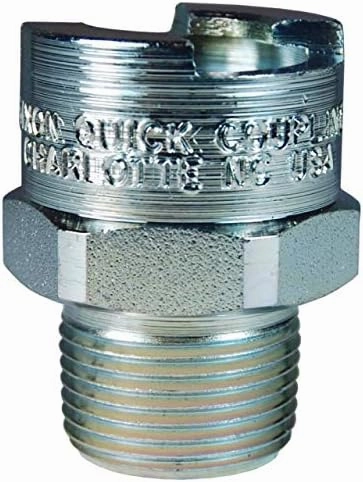

4NM6, Dix-Lock N-Series Interch. F Head x M End Coupler, 1/2", 3/4"-14 NPTF, Steel

Specifications

• Rated pressure for connected Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,000 PSI (755 bar) Burst
• Conforms to MIL-C-3486 and A-A-50431A standards

Construction

• Machined components are manufactured using solid bar stock.
• Nitrile (Buna-N) seals standard
• Steel componentry is plated using ROHS Compliant Trivalent Chrome.

Compatibility & Interchange Data

• Bowes Interchange Bayonet Style
• Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock

Safety Notes

• It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
